675.2423 | Afschakelbare CEE-wandcontactdoos IP67 32A 4-polig 3h Mechanische vergrendeling | 400V (50+60 Hz) rood | | Industrial Interlock Waterdichte Industriële Stopcontact voor koel/vries Container
Productinformatie " Afschakelbare CEE-wandcontactdoos IP67 32A 4-polig 3h Mechanische vergrendeling"

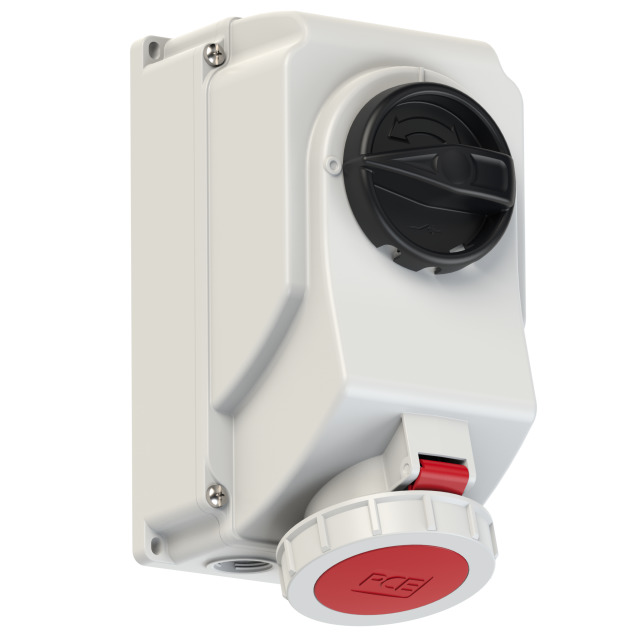

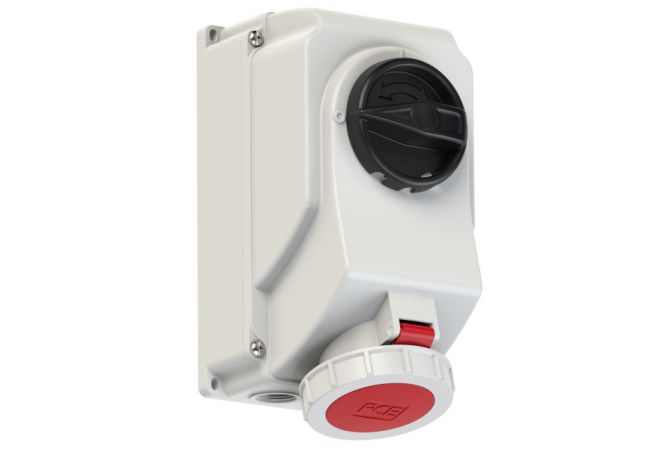

CEE-switched interlocked socket 32A 4p 3h IP66/IP67
- CEE-switched interlocked socket 32A 4p 3h IP66/IP67
- housing material: PC/ABS
- rated current: 32A
- number of poles: 4 (3P+PE)
- clock-position: 3h
- rated voltage/frequency: 380/440V~ / 50/60Hz
- contacts: brass nickel plated
- connection technology: screw terminals

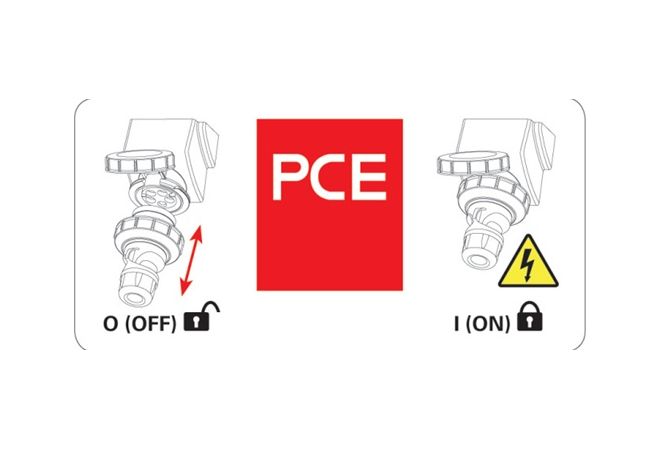

- wall mounting, mechanical interlock
- switch: ON/OFF PCE-Merz ML0; EN 60947-3; AC22A, 10kA
- cable entry: top, bottom or rear (incl. threaded blind cap)
- IP protection class: IP66/IP67
Eigenschappen:
- CEE-switched interlocked socket 32A 4p 3h IP66/IP67
- Military model 32
- Contact material 4
- Protection 400-440 V (50+60 Hz) red
- Model 3
- Material housing Red
- With earth leakage switch IP67
- Type of switch Mechanical locking
- Identification colour Plastic
- Clock hour position h
- Base unit and cover
- Number of poles
- CuZn
- Amperage according to UL/CSA (for UL-version)
- Nickel-plated
