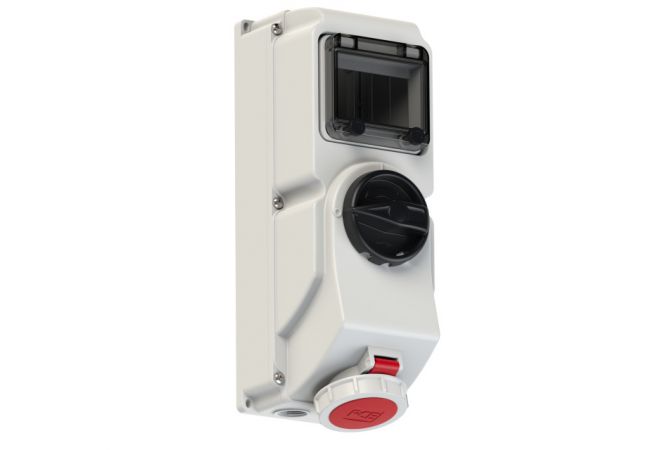

PCE 76132-6 CEE-switched interlocked socket DIN 16A 4p 6h IP66/IP67
Productinformatie "CEE afschakel- en vergrendelbare wandcontactdoos D, in 16A 3p 6h IP67"
- CEE-switched interlocked socket DIN 16A 4p 6h IP66/IP67
- housing material: PC/ABS
- rated current: 16A
- number of poles: 4 (3P+PE)
- clock-position: 6h
- rated voltage/frequency: 380-415V~ / 50+60Hz
- contacts: brass nickel plated
- connection technology: screw terminals

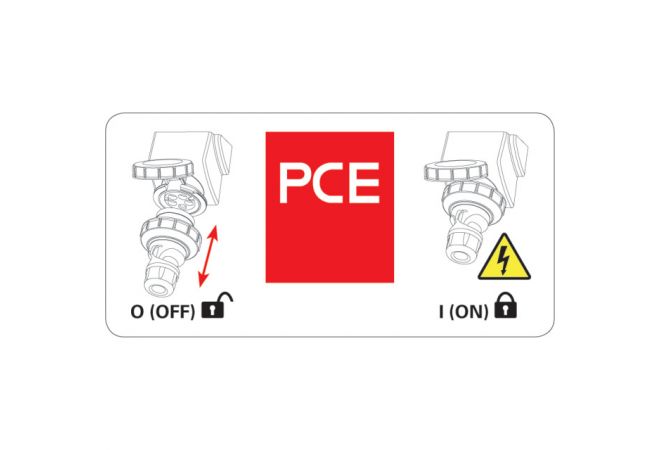

- wall mounting, mechanical interlock, hinged window (5 modules), DIN-rail
- switch: ON/OFF PCE-Merz ML0; EN 60947-3; AC22A, 10kA
- cable entry: top, bottom or rear (incl. threaded blind cap)
- IP protection class: IP66/IP67
